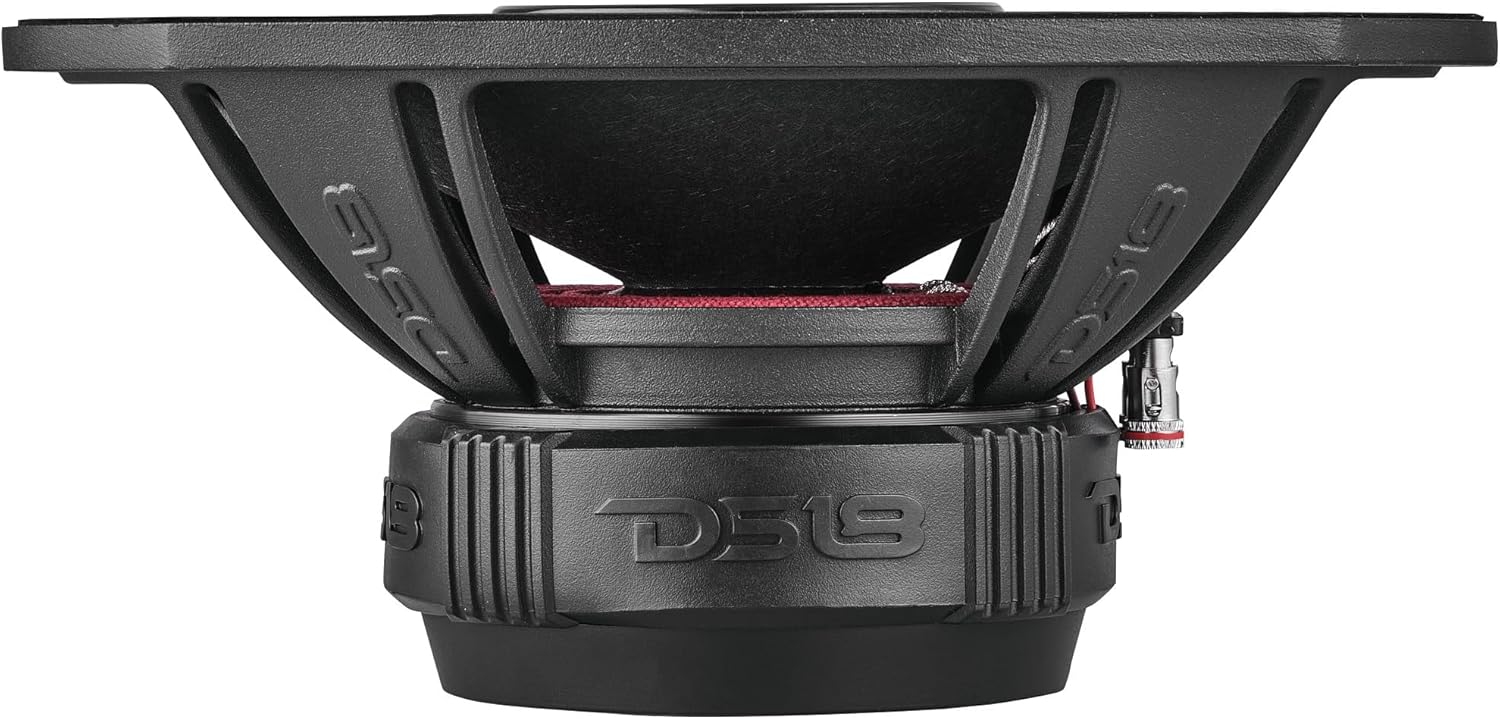

DS18 PRO-HY69.4B 6x9 Water Resistant Hybrid Mid-Range Loudspeaker with 1" Driver 500W Max Power 4-Ohm - Midrange with Compression Driver Horn Great for Motorcycles and All Audio Applications
Product details
| Management number | 221804801 | Release Date | 2026/05/03 | List Price | US$69.58 | Model Number | 221804801 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
GENERAL SPECIFICATIONSNominal Diameter: 6X9" / 152x228 mm Nominal Impedance: 4 OHMS RMS Power Handling: 250 Watts MAX Power Handling: 500 Watts Sensitivity (1w/1m): 97 dB Frequency Response: 50Hz-20KHz Recommended Hi Pass Crossover: 80 Hz Number of Ways: 2 Ways Pair or Single: Single WOOFER SPECIFICATIONSVoice Coil Diameter: 1.5" / 38.6 mm VC Former Material: Glass Fiber Winding Material: CCAW Cone Material: Water Resistant Paper (IPX5) Surround Material: Cloth Basket Material: Aluminum Basket Color/Finish: Matte Black Magnet Material: Ferrite Magnet Weight: 27 Oz Displacement Volume: 0.051L / 0.0018ft3 THIELE & SMALL PARAMETERSEquivalent Volume: Vas: 14.84L / 0.52ft3 Excursion (one way): Xmax: 9.2 mm Free Air Resonance: Fs: 87 Hz Mechanical Factor: Qms: 3.629 Electrical Factor: Qes: 0.661 Total Factor: Qts: 0.559 Mechanical Mass: Mms: 14.264 g Mechanical Compliance: Cms: 0.236 mm/N BL Factor: Bl: 6.135 Voice Coil Inductance: Le: 4.22 mH Cone Area: Sd: 210.48 cm² DC Resistance: Re: 3.2 ohm Mechanical Mass w/o air: Mmd: 12.509 g DRIVER SPECIFICATIONSVoice Coil Diameter: 1" / 25.4 mm VC Former Material: Kapton Winding Material: CCAW Diaphragm Material: Titanium Magnet Material: Neodymium Horn Diameter: 3.26" / 83 mm MEASUREMENTSOverall Diameter: 9.45X6.57" / 240X167 mm Overall Depth: 4.54" / 115.4 mm Front Mount Baffle Cutout: 8.74X5.98" / 222X152 mm Mounting Depth: 4.21" / 107 mm Motor Diameter: 4.61" / 117 mm
- Powerful Hybrid Design - Experience a harmonious blend of a high-wattage 6x9" midrange speaker and a dynamic 1" driver, seamlessly integrated into a single, eye-catching unit for unparalleled audio performance
- Crisp High-Frequency Clarity - The titanium diaphragm and neodymium magnet in the 1" compression driver horn deliver crystal-clear highs, adding brilliance and detail to your music
- Impressive Power Handling - With a robust 250W RMS and peak power handling of 500W, this speaker can handle intense audio demands, ensuring exceptional volume levels and fidelity
- Weather-Resistant Build - Designed to brave the elements, the water-resistant cone protects your investment against moisture, making it an ideal choice for motorcycles, boats, and outdoor installations
- Versatile Audio Solution - Perfectly suited for motorcycle, boat, car, and professional audio setups, the PRO-HY69.4B's wide frequency response range (50Hz-20KHz) and recommended hi-pass crossover (80Hz) ensure exceptional audio quality across various applications
| UPC | 810097262461 |
|---|---|
| Brand | DS18 |
| Color | Black |
| Impedance | 4 Ohms |
| MP3 player | No |
| Model Name | PRO-HY69.4B |
| Unit Count | 1.0 Count |
| Manufacturer | DS18 |
| Model Number | PRO-HY69.4B |
| Power Source | Corded Electric |
| Speaker Size | 9 Inches |
| Speaker Type | Outdoor, Surround Sound, Woofer |
| BuiltIn Media | grill |
| Input Voltage | 10 Volts |
| Is Waterproof | TRUE |
| Mounting Type | Wall Mount |
| Warranty Type | Limited |
| Control Method | App |
| Bluetooth Range | 10 Meters |
| Controller Type | Voice control |
| Number of Items | 1 |
| Woofer Diameter | 6.75 Inches |
| Antenna Location | Motorcycles, boats, cars, outdoor installations |
| Tweeter Diameter | 25.4 Millimeters |
| Audio Driver Size | 6 Inches |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Stereo |
| Compatible Devices | Smartphone, Tablet, MP3 Player, Desktop, Television, Projector, Laptop |
| Enclosure Material | Aluminum |
| Frequency Response | 20 KHz |
| Number Of Circuits | 1 |
| Subwoofer Diameter | 9 Inches |
| Additional Features | Waterproof |
| SignaltoNoise Ratio | 97 dB |
| Wireless Technology | Bluetooth |
| Age Range Description | Adult |
| Connectivity Protocol | Bluetooth |
| Number of Power Levels | 1 |
| Water Resistance Level | Water Resistant |
| Connectivity Technology | wired |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 4.54"D x 9.45"W x 6.57"H |
| Specific Uses For Product | Motorcycles, boats, cars, outdoor installations |
| Compatible with Vehicle Type | Motorcycles, boats, cars |
| Speaker Maximum Output Power | 500 Watts |
| Subwoofer Connectivity Technology | Wired |
